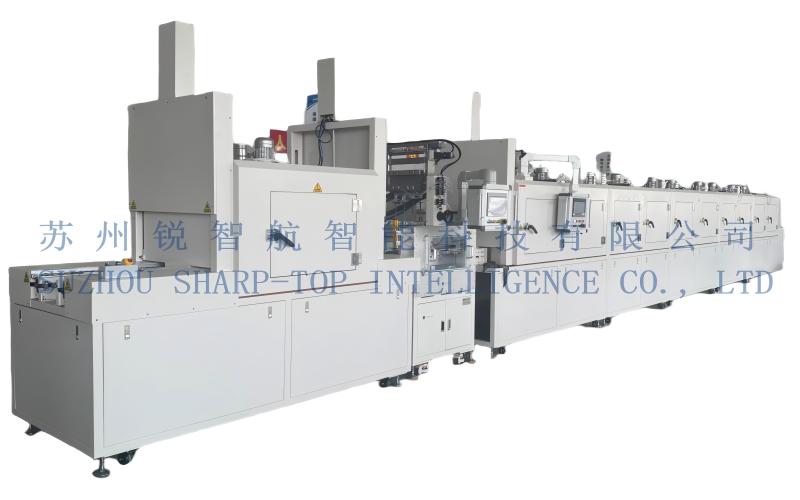

Inline Vacuum Potting Line for Automated Glue Injection

GET A QUOTE

🧩 Inline Preheating, Potting, Curing & Cooling Straight Reflow Line

Smart Control: Integrated with PLC + HMI interface for user-friendly operation and high automation.
Efficient Heating: Achieves temperatures up to 200°C, with ±3°C temperature stability, ensuring uniform heating.
Excellent Insulation: Exterior surface remains within +5°C of ambient, minimizing energy loss and ensuring safety.
Customizable Design: Fully non-standard configurable, supporting multi-layer and multi-track layouts for varied production needs.
Automated Integration: Supports auto-loading/unloading and optional robotic integration to improve production efficiency.
Automatic Reflow: Built-in reflow mechanism streamlines the production process and reduces handling time.

Item	Specification
Temperature Range	Ambient to 130°C, adjustable
Temperature Fluctuation	≤ ±3°C
Internal Temp. Difference	≤ ±3°C in steady state
Heating Rate	< 5°C/min
Exterior Temperature	≤ Ambient +5°C (except around panel joints)
Air Circulation System	Dual-side & bottom outflow, top return; or top outflow with multi-direction return airflow
Power Supply	Three-phase, 380V, 50Hz
Exterior Construction	2.0 mm thick cold-rolled steel, high-temp electrostatic powder coating, corrosion-resistant
Footing System	Adjustable feet + caster wheels for stability and mobility
Inner Chamber Material	1.5 mm SUS304 stainless steel; dust-free, anti-rust, corrosion-resistant
Furnace Frame Structure	Reinforced square steel structure with expansion tolerance design
Over-Temperature Control	Imported temperature modules; auto shutoff when exceeding preset thresholds
Power Output	Configured based on actual production requirements
