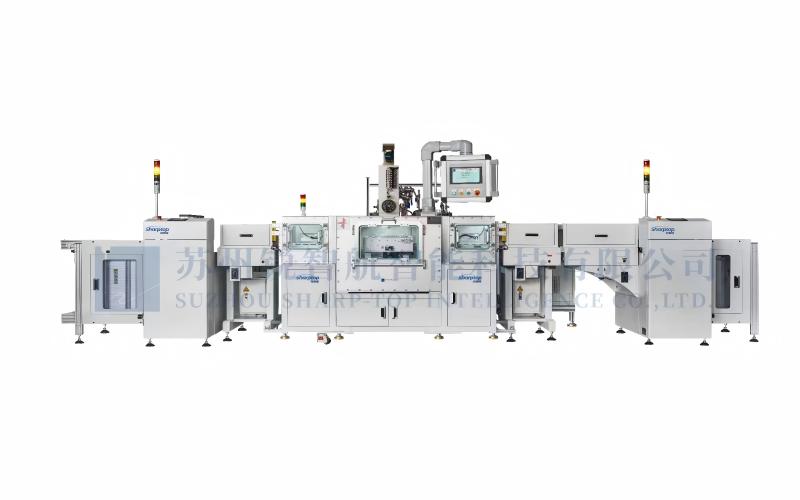

Inline Three-Stage Vacuum Potting Line

🧩 Inline Three-Stage Vacuum Potting Line

✅ Key Features

• High-Precision Dispensing: Equipped with piston pump dispensing heads (single or multi-nozzle), ensuring high metering accuracy and efficient output.

• Customizable Design: Triple-chamber vacuum system and tray sizes are fully customizable for diverse production needs.

• Full-Process Vacuum Handling: From material preparation to final dispensing, the system maintains a continuous vacuum environment, eliminating air bubbles and improving product reliability.

• Segmented Functional Structure:

• Pre-Vacuum Chamber (Front): Removes air from products before potting.

• Dispensing Chamber (Middle): Integrated 3-axis servo-driven platform ensures precise glue application.

• Post-Pressure Chamber (Rear): Maintains pressure after potting to stabilize product.

• Smart Control System: Siemens PLC + touchscreen interface with Advantech industrial PC, ensuring intuitive operation and precision control.

• Real-Time Monitoring: Displays live vacuum data; includes an automated glue weight monitoring system for process control.

• High-Efficiency Automation: Supports continuous inline dispensing, with automated loading/unloading trays at both ends of the line, enabling fully automated production flow.

⚙️ Technical Specifications
